Summary:
The REVEAL X-Pro camera features several operational components on its front, including a lens, antenna port, status indicator, microphone, SIM slot, display screen, PIR motion sensor, IR LEDs, navigation arrows, SD card slot, power/enter button, and battery eject button. The bottom includes ports for external power, a USB-C connection, and a tripod/mount attachment. The back offers security features like cable lock holes, accessory threads, strap holes, and solar panel attachment rails. For detailed usage instructions, users should consult the REVEAL X-Pro User Manual.
Front of Camera

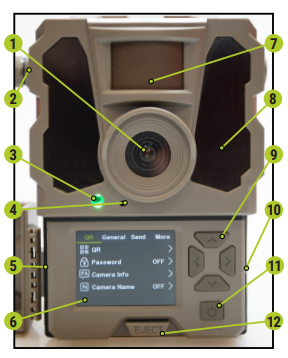

The front of your REVEAL X-Pro camera houses the primary operational components:
- Lens: The optical component that captures images and videos.
- Antenna Port: The connection point for the external antenna (often pre-installed or included).
- Camera Working Status Indicator: A light that indicates the camera's current operational status.
- Microphone: Captures audio for video recordings.
- SIM Slot: The location for the camera's SIM card.
- Display Screen: The integrated LCD screen used for menu navigation, live preview, and viewing camera information.
- PIR Motion Sensor: The Passive Infrared sensor that detects motion and triggers the camera to record.
- IR LEDs: Infrared Light Emitting Diodes that provide illumination for "No Glow" night vision photos and videos.
- Navigation Arrows: Buttons (Up, Down, Left, Right) used to navigate through the camera's menu options.
- SD Card Slot: Where the microSD card is inserted for storing photos and videos.
- Power/Enter Button: Controls the camera's power (ON/OFF) and acts as the "Enter" or "Select" button within the menu.
- Battery Eject Button: Used to release the battery tray for easy removal.
Bottom of Camera
The bottom of your REVEAL X-Pro camera contains essential ports and an attachment point:
- External Battery In / DC Port: For connecting an external power source, such as a solar panel or external battery pack.
- USB-C Port: A modern USB port used for connecting the camera to a computer for data transfer or firmware updates.
- Tripod/Mount Attachment: A standard threaded insert for mounting the camera on a tripod or other compatible accessories.
Back of Camera
The back of your REVEAL X-Pro camera provides security and specialized mounting options:
- Cable Lock Holes: Pass-through holes for threading a security cable lock to deter theft.
- 1/4-20 Accessory Thread: A standard tripod screw mount, compatible with various camera mounting accessories (e.g., specialized mounts, small tripods).
- Strap Holes: Openings for threading a mounting strap to secure the camera to a tree or pole.
- Solar Panel Attachment Rails: Integrated rails designed for attaching a compatible solar panel directly to the camera for continuous charging (solar panel typically not included).
For more detailed instructions on using these features, please refer to your REVEAL X-Pro User Manual.
