Firmware Update for REVEAL SK/XB

If your SK/XB camera's firmware ends in d403, you DO NOT need to update your firmware.

The current Firmware for the 2021 XB/SK ends in BA07 or BB09.

If you are having an issue with your date or time on your SK or XB, you can do a firmware update to correct the issue.  This will add the firmware ending in d403 to your camera.

Make a note of any settings, as doing the firmware update will default back to factory settings.

Click on the link below and download the file.

REVEAL SK/XB Firmware

1. Use a new or formatted SD card (formatting the SD card will erase any data on the card).

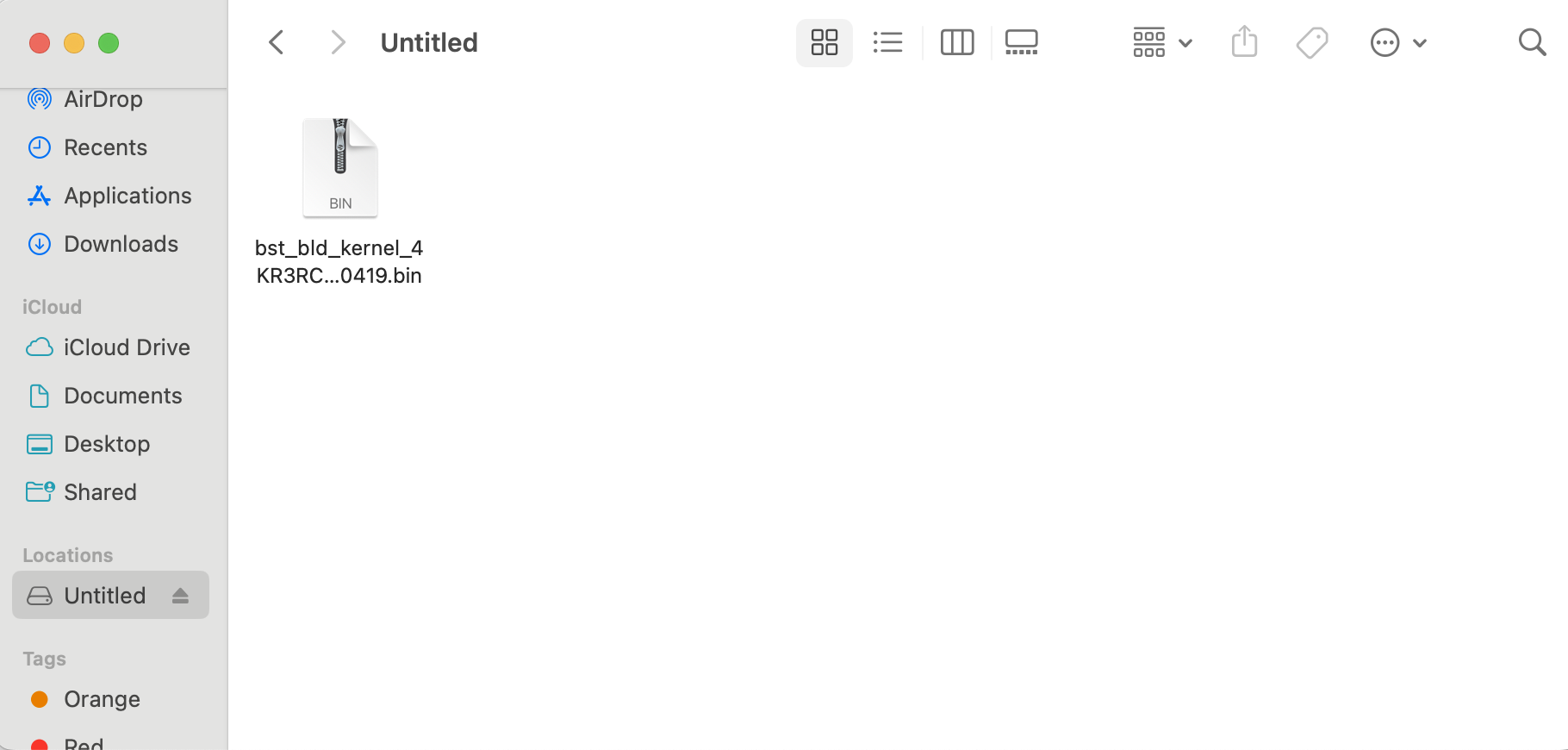

2. Drag the file and place it on an SD card compatible with your REVEAL camera. DO NOT put the file in a folder.
3. The File will not open with any application; it can only be read by the Reveal camera.
4. Put the SD card with the file in the REVEAL camera.
5. IMPORTANT: Make sure that you have recently replaced your batteries (the device cannot lose power during this process)
6. To initiate the update, begin with the camera on ‘Off’.
7. Press and hold the TEST button.
8. While continuing to hold the Test button, slide the Mode slider on the left to ‘SETUP’.
9. The status light will flash until it reboots. Once the status light starts blinking rapidly, you may let go of the TEST button.
10. After it reboots, your update is finished.

To verify the firmware update you can connect to the REVEAL SK or XB wifi via the app.

1. Open the app and go to the account icon.
2. Click Connect to REVEAL wifi
3. Turn the camera into setup mode
4. Follow prompts to connect to wifi

Once connected the firmware will display on the screen and end in d403.
