REVEAL X 1st Generation Firmware

Current Firmware versions for the Original Reveal X end in: B308, B401, B702, B901. if you have another version, you may need to do a firmware update.

Instructions for B308 Reveal X Update:

• Please download the files attached below.
• Once you’ve downloaded these files, you will follow the instructions below.
• SPHOST.BRN
• SPHOST.CFG

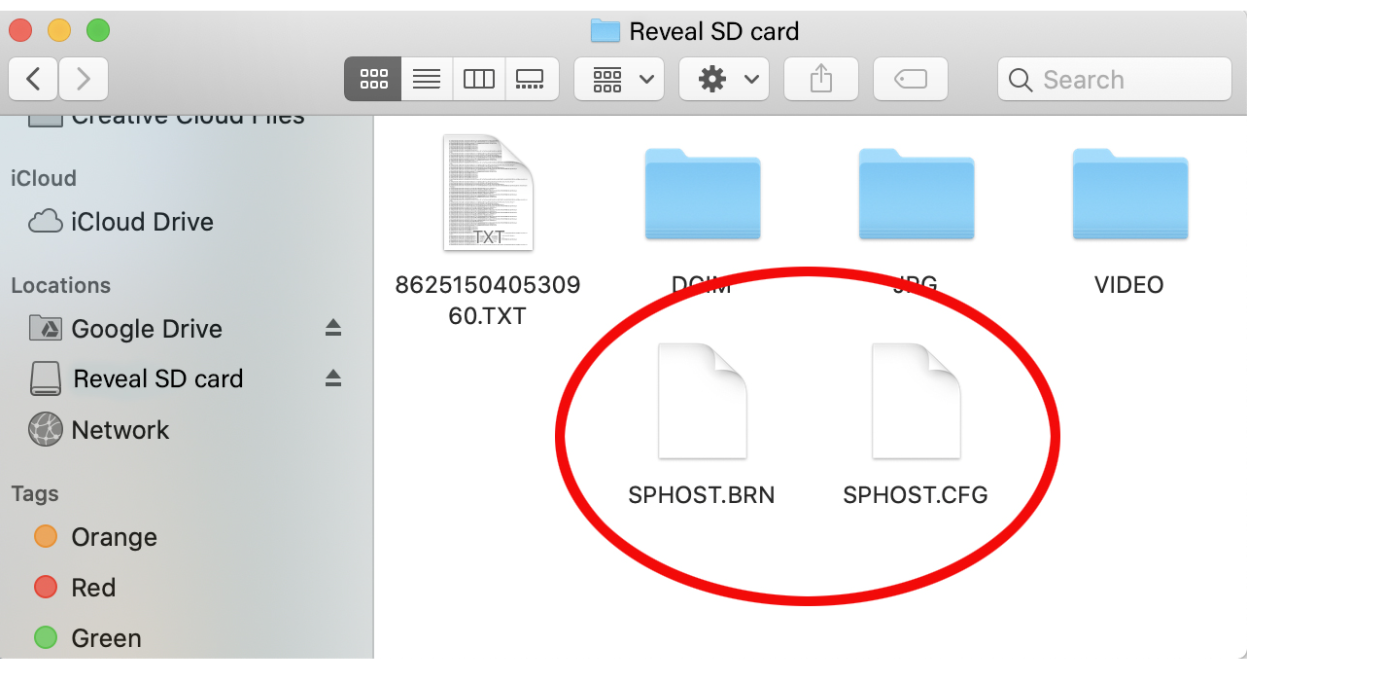

1. Download the SPHOST.BRN and SPHOST.CFG files and place them on an SD card compatible with your REVEAL camera. DO NOT put the files in a folder.
2. Make sure the file names (SPHOST.BRN and SPHOST.CFG) have not changed. The Files will not open with any application, they can only be read by the Reveal camera.
3. Put the SD card with the (SPHOST.BRN and SPHOST.CFG) files in the REVEAL camera.

4. When you start the update DO NOT power off your camera. The update can take 5 min… when the update is finished your Reveal camera will power off and then restart.

💥IMPORTANT: Make sure that you have recently replaced your batteries (it is important the device does not lose power during this process)💥

1. To initiate the update, begin with the camera on ‘Off’.
2. Press and hold the TEST button.
3. While continuing to hold the Test button, slide the Mode slider on the left to ‘SETUP’.
4. The status light will flash until it reboots. Once the status light starts blinking, you may let go of the TEST button.
5. After it reboots, your update is finished.
